AB BLE Gateway V4

As we moved apartments earlier this year, I realized that the new position of my home server puts it out of range of some of the Bluetooth Low Energy sensors we have (Temperature, CO₂, Soil Moisture etc). To bridge this, I got myself a cheap BLE-to-IP gateway, only to realize that this won’t just work out of the box 1.

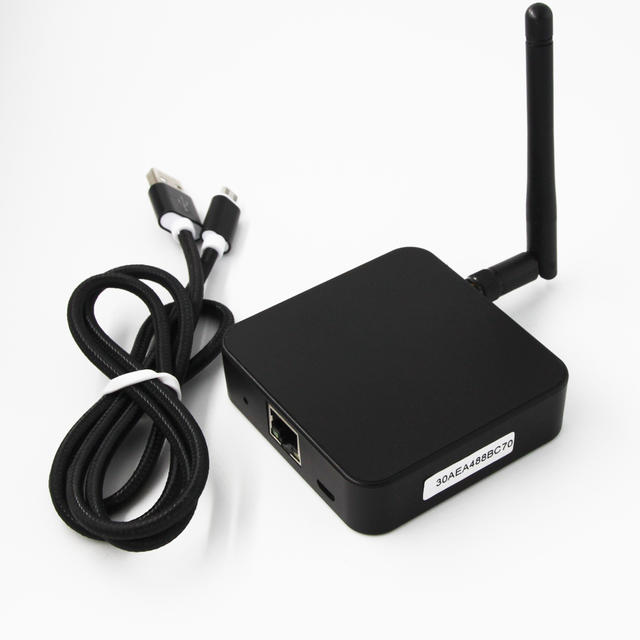

The April Brother (AB) BLE Gateway V4

The April Brother (AB) BLE Gateway V4 is an ESP32- and NRF52832-based BLE to network gateway and bridge. It reads BLE advertisements data such as iBeacon, Eddystone or customized format data and sends to LAN/internet server (via MQTT, HTTP or Websockets). It’s widely distributed through AliExpress, Amazon, Taobao etc.

For more information, see the April Brother Wiki.

Home Assistant Component

To use this device, I had to implement a small component that allows forwarding BLE data from the April Brother (AB) BLE Gateway V4 to the new bluetooth component released in Home Assistant 2022.8.

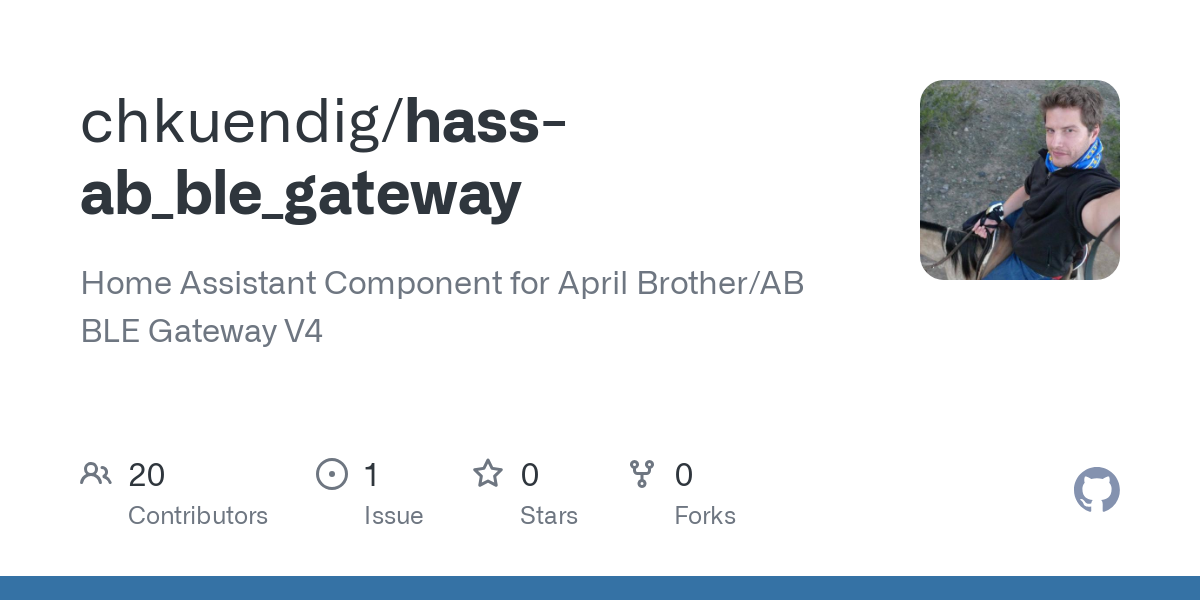

Home Assistant Component for April Brother/AB BLE Gateway V4

While the data encoding is documented, converting the data correctly was still quite a bit of work2 - if you are curious, all relevant code is in the parsing function in util.py.

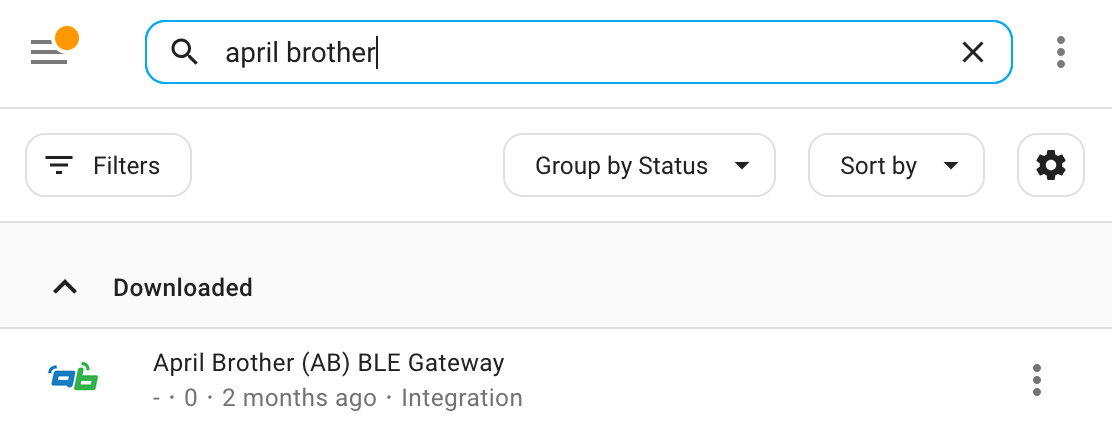

For my purposes, I only implemented forwarding via MQTT (i.e. no support for HTTP or Websockets). I’ll also try to get this included in the Home Assistant Community Store (HACS) eventually3.

Setup Instructions

The component should automatically discover any devices on the network (the gateway advertises itself via SSDP).

Please make sure to have setup the MQTT component and have it configured to the same queue and server as in the Gateway config.

The component supports authenticated login and automatically checks that the MQTT settings match.

Configuration of the Gateway

The easiest and most portable way to configure the gateway is through the electron based configuration tool at AprilBrother/gw4-config-tool. You’ll need to have node + npm installed to run it.

  1. Clone the repo
    git clone https://github.com/AprilBrother/gw4-config-tool.git
cd gw4-config-tool
  2. Install the configuration tool including it dependencies
    npm i .
  3. Launch
    npm start
    At this point, the configuration tool should find the gateway automatically (interestingly enough this happens by enumerating the whole subnet instead of using the SSDP broadcast… 🙄)
